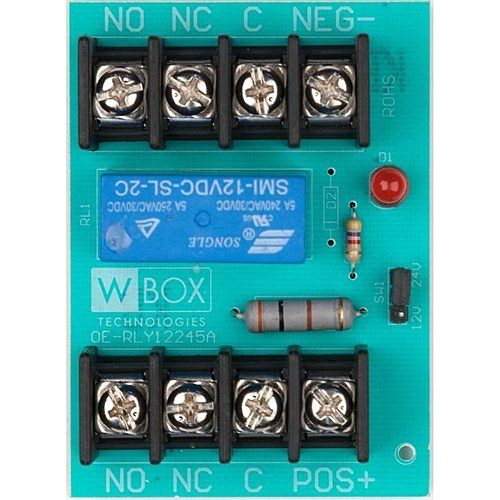

0E-RLY12245A Relay Module – 5A 220VAC/28VDC DPDT Contacts, Selectable 12V or 24V DC Input, Wall-Mount, High-Current Control for Intrusion, Access Control, and Video Surveillance Systems

The 0E-RLY12245A is a robust relay module designed for high-current switching applications in security and electronic control systems such as intrusion detection, access control, and video surveillance. Equipped with Double Pole Double Throw (DPDT) contacts rated at 5 amps for both 220V AC and 28V DC, this module enables reliable control or activation of connected devices requiring substantial power handling. It supports selectable operation with either 12V or 24V DC input, providing flexibility to fit various system voltage requirements. With a moderate current draw of 75 mA and an AC input power requirement of 9.6 VA, this relay module balances performance with power efficiency. It includes multiple operational modes such as dry contacts, latching dry contacts, polarity reversal, and line seizure to meet complex system control needs. The module is designed for convenient wall mounting and includes double-sided foam tape for secure installation. It operates reliably across a wide temperature range from -13°F to 131°F (-25°C to 55°C), with storage tolerance from -13°F to 158°F (-25°C to 70°C) and humidity resistance up to 95%. Compact and durable, the 0E-RLY12245A provides dependable relay control for professional security environments.

Model/SKU: 0E-RLY12245A / 18-EW5E-HSY3
