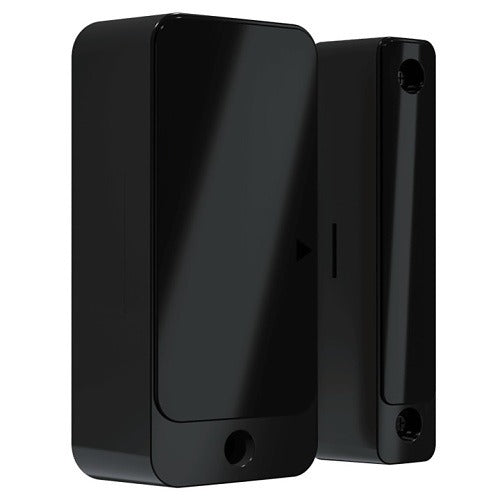

2GIG DW30E-900 Outdoor Encrypted Contact Sensor 900MHz 1.2 Mile IP56

Cover the gate. Cover the far fence.

An outdoor wireless contact sensor with two-way AES encryption and 1.2 miles of line-of-sight range, built to guard gates, garages and outbuildings on compatible 2GIG E+ panels.

$128.60 $178.60
In stock
See details
Fast shipping2GIGSecure checkout
2GIG DW30E-900 Outdoor Encrypted Contact Sensor
Gate opens at the far fenceUp to 1.2 miles line of sight
Rain, dust, -40°F to 140°FIP56 rated housing

Your perimeter is only as secure as its weakest signal.

Gates, outbuildings and detached garages sit far from the panel and face weather every day. A sensor needs range, protection from the elements and secure communication to be trusted out there.

✕
Without itOutlying entry points go unmonitored, or rely on sensors that struggle with distance, weather and unprotected signals.
✓
With the DW30E-900The DW30E-900 reports gate and outbuilding openings back to a compatible 2GIG E+ panel over 900MHz with two-way AES encryption.
What you get

Built for the outer perimeter

Range, weatherproofing and flexible mounting for the entry points that sit farthest from the house.

1.2-mile wireless range

E+ technology on 900MHz delivers up to 1.2 miles of range (line of sight), suited to large properties.

2GIG DW30E-900 Outdoor Encrypted Contact Sensor 900MHz 1.2 Mile IP56
1.2 mi

Wireless range

Up to 1.2 miles, line of sight, with E+ technology on 900MHz.

Two-way AES encryption

Communication with compatible 2GIG E+ control panels such as the Edge is encrypted and tamper-resistant.

Wide 1.3 inch magnet gap

Handles gates, oversized doors and curved surfaces where a standard gap would not work.

NO and NC dry contacts

External Normally Open or Normally Closed dry contact inputs expand what the sensor can monitor.

The brand

2GIG

58 2GIG products at Raztechs.

Shop 2GIG
  • Fast shippingUS and Canada
  • 30-day returnsOn eligible items
  • Quotes & sourcingJust ask
Details

Everything you need to know.

Brand2GIG
ModelDW30E-900
TypeOutdoor wireless encrypted magnetic contact sensor
Frequency900MHz
Wireless rangeUp to 1.2 miles (line of sight)
EncryptionTwo-way AES
Weather ratingIP56
Operating temperature-40°F to 140°F
BatteryOne CR123A lithium, up to five years
Magnet gapUp to 1.3 inches
Dry contact inputsExternal NO or NC
ListingETL-listed to UL 1023
Description

2GIG DW30E-900 Outdoor Encrypted Contact Sensor 900MHz 1.2 Mile IP56

The 2GIG DW30E-900 E+ Series is an outdoor wireless encrypted magnetic contact sensor engineered for perimeter security on gates, garages, outbuildings, and entry points. Operating on 900MHz with E+ technology, it delivers up to 1.2 miles of wireless range (line of sight) and two-way AES encryption for secure, tamper-resistant communication with compatible 2GIG E+ control panels such as the Edge.

Built for durability in harsh outdoor conditions, the sensor features an IP56 rating for protection against dust and rain, with an operating temperature range of -40°F to 140°F. The paintable casing allows discreet integration into any environment. Battery life extends up to five years from a single CR123A lithium battery, minimizing maintenance needs.

The DW30E-900 accommodates a wide magnet gap of up to 1.3 inches for various installation scenarios, including gates, oversized doors, and curved surfaces. External Normally Open or Normally Closed dry contact inputs provide expanded sensing flexibility. The sensor is fully supervised, user-friendly to enroll, and ETL-listed to UL 1023 standards for professional-grade security compliance.

Key features include extended 1.2-mile wireless range ideal for large properties, two-way AES encryption for tamper resistance, all-weather IP56 housing for extreme temperatures, up to five-year battery life, wide magnet gap for installation flexibility, paintable casing for discrete outdoor integration, and support for both NO and NC dry contacts for expanded functionality.
Good to know: The 1.2-mile range is line of sight, so real-world distance depends on obstructions. It works with compatible 2GIG E+ control panels such as the Edge.

Need help with compatibility?

Looking for a manufacturer part number, compatible replacement, or quantity order? Contact Raztechs for sourcing and quote support.

Request a quote
2GIG DW30E-900 Outdoor Encrypted Contact Sensor 900MHz 1.2 Mile IP56
At a glance

2GIG DW30E-900, ready to order.

  • Type: Outdoor wireless encrypted magnetic contact sensor
  • Frequency: 900MHz
  • Wireless range: Up to 1.2 miles (line of sight)
  • Encryption: Two-way AES
$128.60DW30E-900
