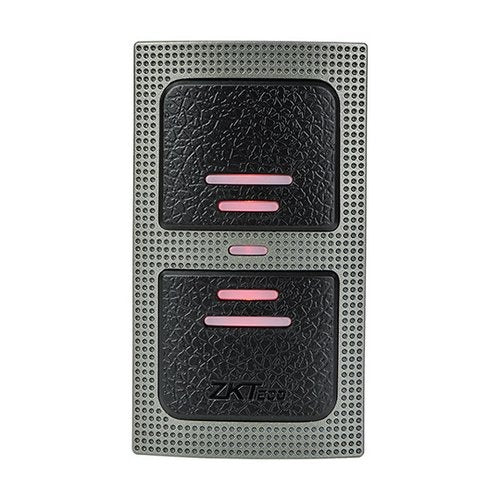

ZKTeco KR500E 125 kHz Proximity Card Reader Wiegand Access Control
Tap in. Door secured.
A 125 kHz outdoor proximity card reader with a slim mullion-mount body and a built-in Wiegand output, so it connects to most access control panels, including ZKTeco C3 and InBio.

A narrow door frame leaves little room for a reader.
Metal door frames and other thin mounting surfaces rule out bulky readers. A reader that is small, weather-rated and speaks a common protocol makes the install simpler.
Slim reader built for outdoors
The KR500E pairs a compact mullion form with outdoor rating and panel-ready Wiegand output.
Mullion-mount design
The slim mullion form factor allows simple, easy installation on thin door frames and narrow mounting surfaces.

Operating range
Card reading distance for contactless proximity cards.
Built-in Wiegand output
The Wiegand-Out port connects to most access control panels, including ZKTeco C3 and InBio door controllers.
125 kHz card support
Reads multiple 125 kHz proximity cards, and is designed to read only ZKAccess-supplied proximity cards.
IP65-rated for outdoors
The KR500E is rated IP65 for outdoor use, with RoHS certification.
Everything you need to know.
| Brand | ZKTeco |
| Model | KR500E |
| Identification Method | Contactless Card (RFID/Proximity) |
| Host Interface | Wiegand |
| Operating Range | 2" |
| Indoor/Outdoor | Outdoor |
| Input Voltage | 5V DC |
| Height | 3.20" |
| Width | 1.70" |
| Depth | 0.70" |
| Color | Black |
| Environmental Certification | RoHS |
ZKTeco KR500E 125 kHz Proximity Card Reader Wiegand Access Control
This 125 kHz card reader supports multiple ZKAccess proximity cards and features a built-in Wiegand output port for seamless integration with most access control panels, including ZKTeco C3 and InBio door controllers. The 2-inch operating range delivers reliable card detection at standard proximity distances.
Rated IP65 for outdoor environments, the KR500E operates on 5V or 16V DC power and measures just 3.2 inches tall by 1.7 inches wide with a compact 0.7-inch depth. RoHS-certified and environmentally compliant, it suits both indoor and outdoor installations where durability and reliable access control are essential.
Need help with compatibility?
Looking for a manufacturer part number, compatible replacement, or quantity order? Contact Raztechs for sourcing and quote support.

ZKTeco KR500E, ready to order.
- Identification Method: Contactless Card (RFID/Proximity)
- Host Interface: Wiegand
- Operating Range: 2"
- Indoor/Outdoor: Outdoor
