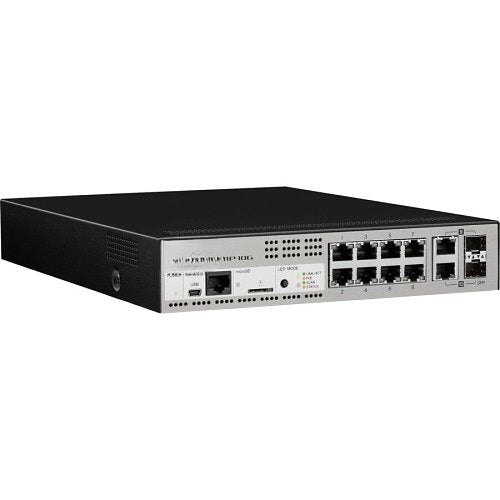

Yamaha SWR2311P-10G Intelligent L2 PoE Switch for Dante Audio
Dante audio, powered and steady.
An intelligent Layer 2 switch with 8 PoE ports and 2 LAN/SFP combo ports, built for Dante audio networks. Stable-network settings are easy to apply, and PoE powers your endpoints.

A Dante network is only as steady as its switch.
Dante audio depends on settings like QoS, EEE and IGMP Snooping. This switch makes the recommended settings easy to apply, so the network stays stable.
Built for stable Dante networks
Setup, power and monitoring come together in one managed Layer 2 switch.
Easy Dante settings
Recommended settings for stable operation of a Dante network, such as QoS, EEE and IGMP Snooping, can be made easily.

Total PoE budget
Up to 30W is available on each of the 8 PoE ports.
PoE on 8 ports
LAN ports 1-8 supply PoE compliant with IEEE 802.3at, up to 30W to each PoE port, 240W across all ports.
LAN/SFP combo ports
Ports 9 and 10 are LAN/SFP combo ports, where the LAN port and SFP slot are used exclusively.
Yamaha LAN Monitor
The Yamaha LAN Monitor application for Windows computers gives a single-screen view of all necessary parameters.
Everything you need to know.
| Brand | Yamaha |
| Model | SWR2311P-10G |
| PoE Budget | 240W |
| PoE Ports | 8 (#1-8), IEEE 802.3at |
| Combo Ports | 2 LAN/SFP (#9, 10) |
| Total Network Ports | 10 |
| Ethernet Technology | Gigabit Ethernet |
| Layer Supported | 2 |
| Manageable | Yes |
| Rack Unit | 1U |
| Input Voltage | 120V AC |
| Power Consumption | 280.0000W |
Yamaha SWR2311P-10G Intelligent L2 PoE Switch for Dante Audio
Dante-optimized settings include QoS, EEE, and IGMP Snooping for stable, low-latency audio streaming. The included Yamaha LAN Monitor app for Windows provides real-time visibility into network parameters, simplifying deployment and troubleshooting.
Built for reliability in live sound, broadcast, and fixed installation environments. Supports flexible mounting—rack, wall, or ceiling—in a compact 1U form factor. Ships with power cord, clamp, mounting legs, and owner's manual.
Need help with compatibility?
Looking for a manufacturer part number, compatible replacement, or quantity order? Contact Raztechs for sourcing and quote support.

Yamaha SWR2311P-10G, ready to order.
- PoE Budget: 240W
- PoE Ports: 8 (#1-8), IEEE 802.3at
- Combo Ports: 2 LAN/SFP (#9, 10)
- Total Network Ports: 10
