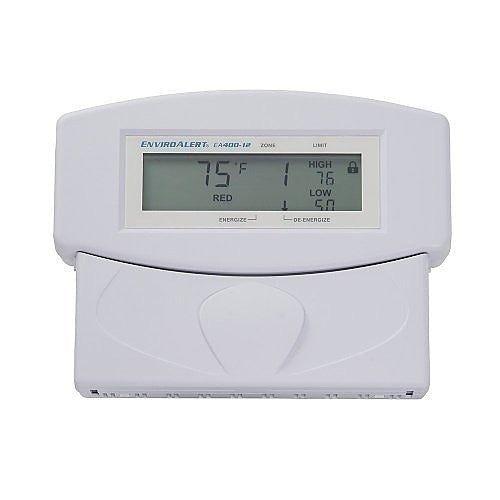

Winland EA400-12 EnviroAlert Four Zone Environmental Monitoring Device 12VDC
Four zones. One watchful eye.
A wall-mount monitor that watches temperature, humidity and water on four zones at once, shows readings on an LCD, and trips relay outputs when a limit is crossed.

Problems start before anyone notices.
Temperature and humidity can drift past safe limits, or water can bridge the contacts of a sensor. The EA400-12 flags each zone when readings leave the limits you set.
Built to watch four zones
Each zone is set up on its own, with relay outputs and an event log built in.
Four zones at once
Run any combination of remote temperature, humidity or water sensing probes at the same time, all shown on an easy to read LCD display.

zones monitored at once
Any combination of temperature, humidity or water sensing probes.
Relay outputs
Four configurable Form C (SPDT) alarm relays (N.O./N.C.) plus one non-configurable Form C (SPDT) auxiliary alarm relay (N.O./N.C.).
8 event memory
Stores 8 incidents with time and date, so you can see what happened and when.
Delay and silence controls
Set an alarm time delay of up to 120 minutes for each zone, and silence the alarm with a 10 minute timer.
Everything you need to know.
| Brand | Winland Electronics |
| Model | EA400-12 |
| Power | 12V DC @ 120mA |
| Unit operating range | 32 to 122 F (0 to 50 C), non-condensing |
| Limit adjustment range | -58 to +302 F (-50 to +150 C), sensor dependent |
| Sensor offset | Up to ±9.0 |
| Alarm relays | 4 configurable + 1 auxiliary, Form C (SPDT) |
| Dimensions | 6.0" x 4.75" x 1.25" (15.24cm x 12.07cm x 3.18cm) |
| Mount | Wall mount, gang box mount |
| Weight | 9.60oz |
| Color | White |
| Certification | RoHS |
Winland EA400-12 EnviroAlert Four Zone Environmental Monitoring Device 12VDC
Monitor up to four separate zones simultaneously with individual sensor inputs. Each zone can be configured independently to trigger alerts when conditions exceed preset thresholds, helping prevent equipment damage, data loss, or environmental hazards. The device features relay outputs for integration with existing automation systems and notification networks.
Built for demanding professional environments, the EA400-12 delivers dependable performance across a range of industrial and commercial applications. Simple setup and configuration allow for quick deployment without complex wiring or programming.
Need help with compatibility?
Looking for a manufacturer part number, compatible replacement, or quantity order? Contact Raztechs for sourcing and quote support.

Winland Electronics EA400-12, ready to order.
- Power: 12V DC @ 120mA
- Unit operating range: 32 to 122 F (0 to 50 C), non-condensing
- Limit adjustment range: -58 to +302 F (-50 to +150 C), sensor dependent
- Sensor offset: Up to ±9.0
