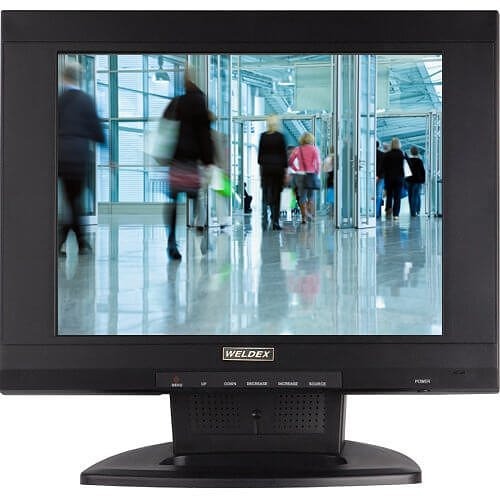

Weldex WDL-1500M 15" LCD Monitor 1024x768 HDMI VGA
Every feed, clear and compact.
A 15" LCD monitor with 1024 x 768 resolution and HDMI, VGA and composite video inputs. Its panel is less than 2.5" deep, so it fits stations where space is limited.

A monitoring screen should not need a big footprint.
Control rooms, surveillance stations and field installations often have little room, but the picture still has to be clear. A thin 15" screen with common inputs keeps the setup simple.
Built for small stations
Compact size, multiple inputs and on-screen controls in one 15" monitor.
Thin cross section
The panel is less than 2.5" deep, which suits tight spaces.

Screen size
A 15.0" viewable TFT LCD panel at 1024 x 768.
Multiple video inputs
Connect composite video, HDMI or D-sub (VGA) sources to the same screen.
Built-in audio
Left/right line inputs and a built-in speaker, plus speaker and earphone outputs.
On-screen menu
Adjust features and video settings through the on-screen menu display.
Everything you need to know.
| Brand | Weldex |
| Model | WDL-1500M |
| Screen Size | 15" |
| Maximum Resolution | 1024 x 768 |
| Aspect Ratio | 4:3 |
| Panel Technology | TFT |
| Brightness (Nit) | 250 |
| Contrast Ratio | 700:1 |
| Mount Type | Wall Mount |
| Operating Power Consumption | 36W |
| Standby Power Consumption | 5.0W |
| Weight | 10.10lb |
Weldex WDL-1500M 15" LCD Monitor 1024x768 HDMI VGA
Need help with compatibility?
Looking for a manufacturer part number, compatible replacement, or quantity order? Contact Raztechs for sourcing and quote support.

Weldex WDL-1500M, ready to order.
- Screen Size: 15"
- Maximum Resolution: 1024 x 768
- Aspect Ratio: 4:3
- Panel Technology: TFT
