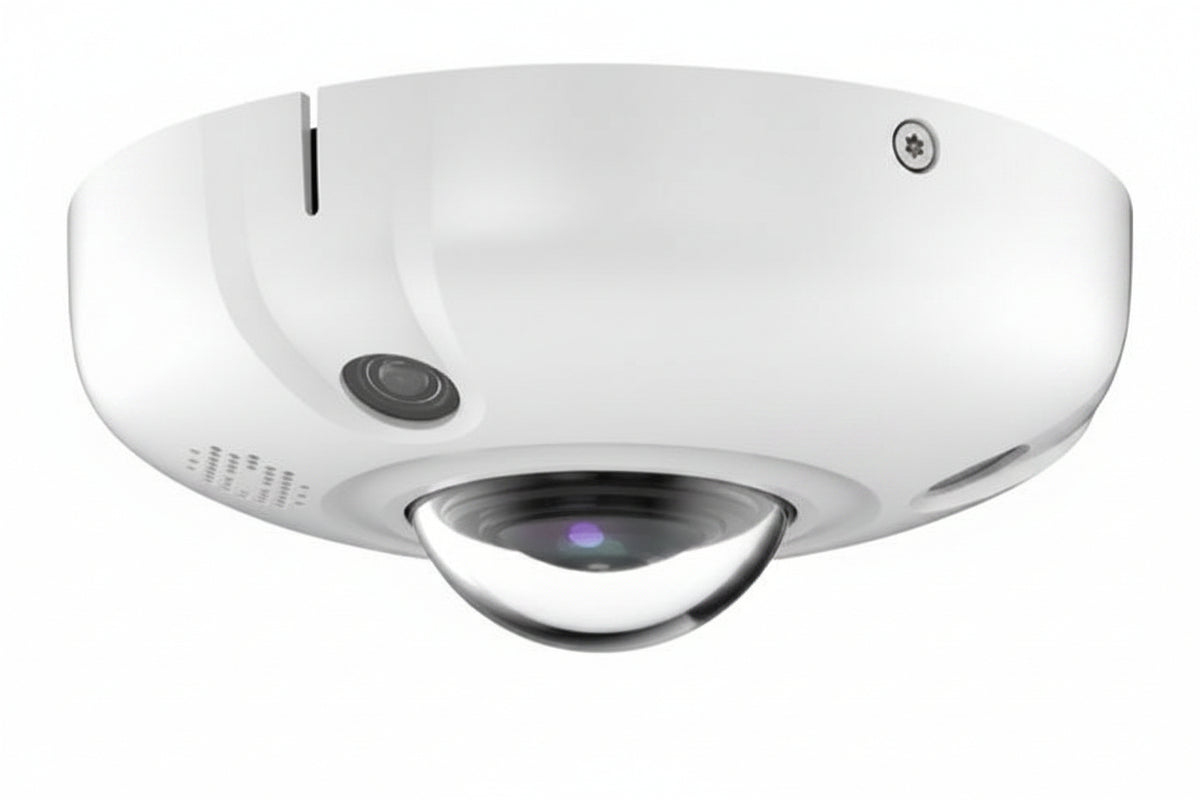

Luminys N9F-8RA1 8MP Fisheye 360° IP Camera, 33' IR Distance, 1.85mm Lens
See every angle, all from one dome.
An 8MP fisheye dome camera with 360° or 180° stitched single-sensor coverage, built to monitor indoor and outdoor spaces and report on how people move through them.

One blind spot is all it takes.
Covering a wide space usually means several cameras and several views to watch. A fisheye dome with stitched single-sensor coverage puts the whole area in one picture.
Coverage plus operational insight
It watches the space like a traditional camera and adds analytics that help you run the facility.
360° or 180° coverage
The 8MP fisheye dome uses a stitched single-sensor design with a 1.85mm lens for comprehensive indoor and outdoor monitoring.

Effective camera resolution
Maximum video resolution is 3280 x 2480 at up to 30fps.
Built-in video analytics
Line crossing and intrusion detection flag events, while people counting, queue management and heat map support daily operations.
Two-way audio
A dual microphone and internal speaker let you listen and speak through the camera.
Local storage and exposure control
A MicroSD slot takes up to 256GB, and DWDR helps balance exposure in mixed lighting.
Everything you need to know.
| Brand | Luminys |
| Model | N9F-8RA1 |
| Effective Resolution | 8MP |
| Lens | 1.85mm, Fixed |
| Max Frame Rate | 30fps |
| IR Distance | Up to 33ft |
| Ingress Protection | IP67 |
| Impact Protection | IK10 |
| Operating Temperature | -40°F to 140°F |
| Input Voltage | 12V DC |
| Video Format | H.264 |
| Dimensions | 5.9" diameter x 2.4" height |
Luminys N9F-8RA1 8MP Fisheye 360° IP Camera, 33' IR Distance, 1.85mm Lens
Key specifications include 1.85mm lens, IR illumination up to 33 feet, dual microphone with internal speaker for two-way audio, and DWDR for balanced exposure. Video content analytics detect line crossing and intrusion events. MicroSD slot supports up to 256GB local storage. NDAA compliant.
Ideal for retail, hospitality, transportation hubs, and enterprise security applications requiring detailed operational insights alongside traditional surveillance.
Need help with compatibility?
Looking for a manufacturer part number, compatible replacement, or quantity order? Contact Raztechs for sourcing and quote support.

Luminys N9F-8RA1, ready to order.
- Effective Resolution: 8MP
- Lens: 1.85mm, Fixed
- Max Frame Rate: 30fps
- IR Distance: Up to 33ft
