infinias S-EIDC+ Ethernet-Enabled Integrated Door Controller, PoE Powered, Supports Wiegand/OSDP Readers

One cable. One smarter door.

A compact 2.8" single-door controller that mounts in a standard double-gang box and gets power and data over one PoE cable, with support for Wiegand and OSDP readers.

$927.00
In stock
See details
Fast shippinginfiniasSecure checkout

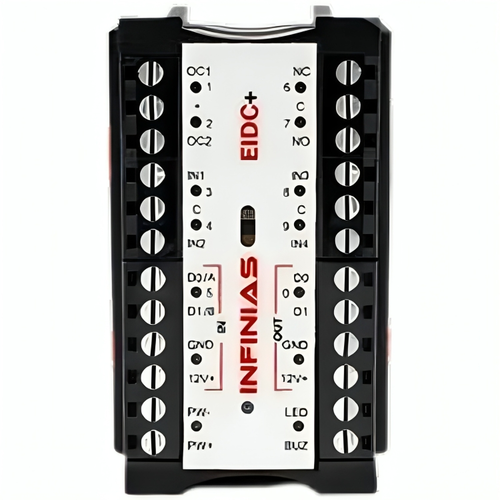

infinias S-EIDC+ Integrated Door Controller
PoE over one CAT5/CAT6 cableOr alternatively 24VDC
Up to 2 Wiegand or OSDP readersModern and legacy compatible

Door wiring shouldn't take all day.

Separate power and data runs add complexity and on-site installation time. A single-door controller that simplifies the wiring keeps access control jobs moving.

✕
Without itYou run separate power and data cabling to each door and spend more time on site getting it connected.
✓
With the S-EIDC+One PoE cable carries both power and data, and the controller fits in a standard double-gang box.
What you get

Built for simpler door installs

Wiring, reader support and security features are packed into one compact IP-based controller.

Power and data over PoE

Delivers both over a single CAT5/CAT6 cable, or you can power it with 24VDC instead.

infinias S-EIDC+ Ethernet-Enabled Integrated Door Controller, PoE Powered, Supports Wiegand/OSDP Readers
16,000

Event buffer entries

Stored locally when the network connection drops.

Modern and legacy readers

Supports up to 2 Wiegand or OSDP readers on a single door.

Encrypted and monitored

Features TLS 1.2-encrypted communications, 3-state alarm monitoring and anti-passback functionality.

Keeps working offline

Buffers up to 16,000 events locally during network disconnection, so operation continues when the host is unavailable.

The brand

infinias

17 infinias products at Raztechs.

Shop infinias
  • Fast shippingUS and Canada
  • 30-day returnsOn eligible items
  • Quotes & sourcingJust ask
Details

Everything you need to know.

Brandinfinias
ModelS-EIDC+
TypeEthernet-enabled integrated door controller
Doors supportedSingle door
Size2.8"
MountingStandard double-gang box
PowerPoE over CAT5/CAT6, or 24VDC
ReadersUp to 2 Wiegand or OSDP
EncryptionTLS 1.2
Alarm monitoring3-state
Event bufferUp to 16,000 entries
NetworkDHCP and static IP
Description

infinias S-EIDC+ Ethernet-Enabled Integrated Door Controller, PoE Powered, Supports Wie...

Compact 2.8" single-door controller designed for streamlined access control installation. Mounts in standard double-gang box and delivers both power and data via PoE over a single CAT5/CAT6 cable, or alternatively 24VDC. Supports up to 2 Wiegand or OSDP readers for modern and legacy reader compatibility. Features TLS 1.2-encrypted communications, 3-state alarm monitoring, and anti-passback functionality to enhance security. Includes lock control, request to exit (REX), alarm bypass, door contact, and configurable inputs for flexible deployment. Connects to existing network infrastructure with DHCP and static IP support. Built for resilience with local event buffering up to 16,000 entries during network disconnection, ensuring continued operation when the host is unavailable. Reduces wiring complexity and on-site installation time while maintaining the performance and security expected from an IP-based access control solution. Scales easily from single-door applications to multi-site expansions.
Good to know: Alarm bypass, request to exit (REX), door contact and configurable inputs are included for flexible deployment, and the controller can also run on 24VDC instead of PoE.

Need help with compatibility?

Looking for a manufacturer part number, compatible replacement, or quantity order? Contact Raztechs for sourcing and quote support.

Request a quote
infinias S-EIDC+ Ethernet-Enabled Integrated Door Controller, PoE Powered, Supports Wiegand/OSDP Readers
At a glance

infinias S-EIDC+, ready to order.

  • Type: Ethernet-enabled integrated door controller
  • Doors supported: Single door
  • Size: 2.8"
  • Mounting: Standard double-gang box
$927.00S-EIDC+
